Fast and compact; it offers a perfect performance at a very competitive price. Quick start and adjustment. 5 mins heat up time. For PVC, melamine, veneer and ABS tapes (including 3D and glass effect). Tapes up to 3mm thick. Glue temperature adjustment controlled by microprocessor, which avoids the temperature oscillation. Motorised pressure glue roller to ensure the perfect edgebanding from the beginning of the panel.
Glue roller with polymerization processing which helps to reduce the glue consumption. Glue pot covered by Teflon® for easy cleaning and maintenance. Excellent finishings without adhesive residue due to the double flat scraper. High performance. Up to 120m of continue edgebanding with the glue pot capacity. Panel thickness from 13 up to 50mm. Suitable for lightweight panels as well. To ensure the tape is well banded, the EB135 is equipped with an automatic feeder for assisted and effortless edgebanding.
Thanks to the two auxiliary rollers on the banding table and a special pressers set, we achieve the optimum pressure of the panel on the banding unit. This ensures a correct banding, specially when using thick and rigid tapes.

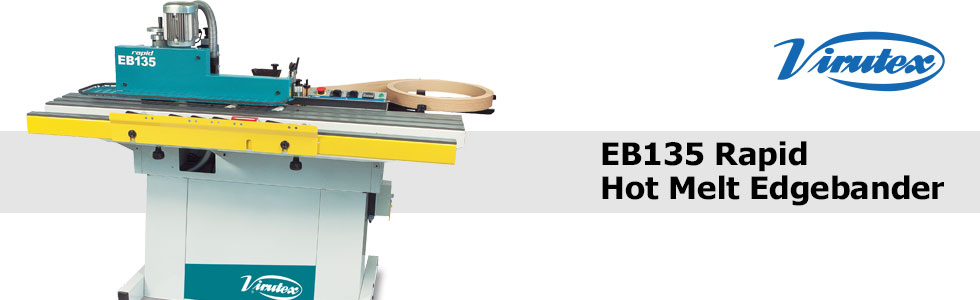

| EB135 Rapid |
Details |
| Input power |
3,450W |
| Min. panel thickness |
13mm |
| Max. panel thickness 0.4-2mm |
50mm |
| Max. panel thickness 3mm |
25 |
| Min. panel width |
120mm |
| Min. panel length |
180mm |
|
| EB135 Rapid |
Details |
| Working temperature |
110°-200°C |
| Working speed |
4m/min |
| Trimming no-load speed |
10,000/min |
| Voltage (single phase) |
220-240v |
| Weight |
150Kgs |
|
