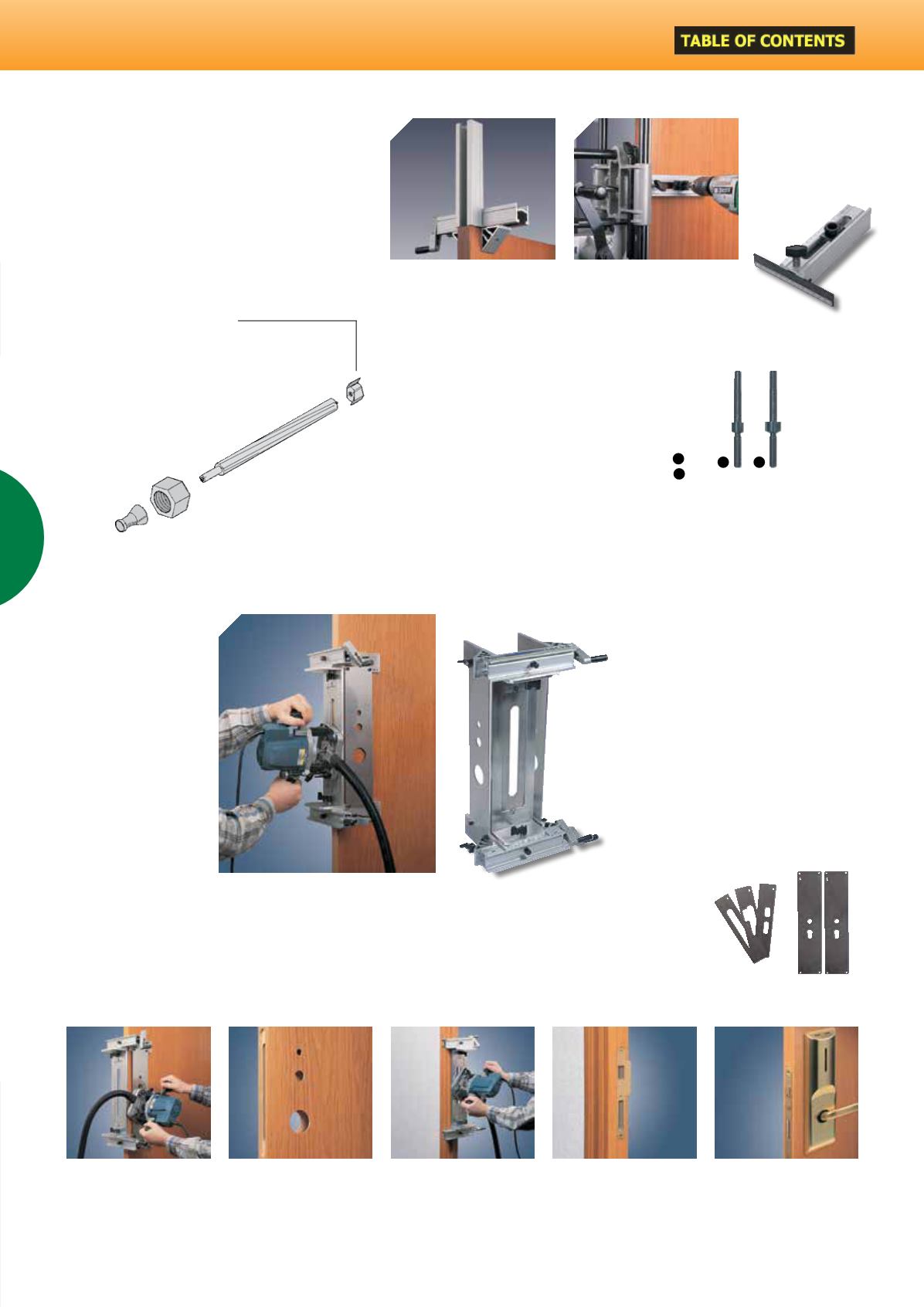

Optional accessories
1645287 UP16I Clamp extension
1645288 UT16I Drilling accessory
1640148 Carb. drilling bit* 2 c. Ø 18 mm
1640149 Carb. drilling bit* 2 c. Ø 23 mm
(*) For using with
a drill
A
B
The clamp extension UP16I
allows to fix the machine also
on both ends of the door.
The accessory UT16I allows to
take references for drilling the
hole for the handle and key
cylinder.
Makingsideholesforplacing
the knob, cylinder or other
mechanisms.
Using UC16K together with
FR66P enables the user to
quickly make recesses of
exceptionally high quality.
UC16K gives extraordinary
results on frames too.
UsingUC16Kwith the FR66P
enables the user to make
recesses for the box-staple
or lock and the holes for the
latch and lever
Standard equipment
Set of templates, template guide for (FR66P
/FR160P) and service keys.
Additional sets may be ordered separately
(ref. 1645365)
Specifications
Work area on door front: 80 x 300 mm.
Work area on door edge: 55 x 300 mm.
Maximum opening of clamp vises: 190 mm.
Maximum grip of clamp vises: 13 mm.
Maximum trimming depth: 60 mm.
TheUC16Kisnecessarywhen
placingmagnetic card locks,
anti-panic locks and other
special kind of locks.
| Lock mortising template holder
Optional bits
Sharing the same tool-holding shaft.
Easily interchangeable.
1640138 Set of 5 carbide bits
Diameters: 18, 21, 23, 25, 30 mm (ref. 1640138)
(*) Bit included with standard equipement.
Tool-holding shaft
included with the FC116U
1640127 Carbide bit Ø 16 mm*
1640150 Carbide bit Ø 17 mm
1640128 Carbide bit Ø 18 mm
1640367 Carbide bit Ø 20 mm
1640129 Carbide bit Ø 21 mm
1640378 Carbide bit Ø 22 mm
1640130 Carbide bit Ø 23 mm
1640368 Carbide bit Ø 23.5 mm
1640131 Carbide bit Ø 25 mm
1640369 Carbide bit Ø 29 mm
1640132 Carbide bit Ø 30 mm
1640140 Drilling bit
UC16K is designed for
making frontal and lateral
recesses for any kind of
lock on doors and frames.
Designed for use with the
router FR66P or FR160P, it
is especially recommended
for making recesses for
locks that open with mag-
netic anti-panic cards and
special opening devices.
Its exclusive attachment
system by means of clamp
vises enables the user to
mortise doors that have
already beenhungwithout
damaging the surface. Se-
cure, reliable grip. Works horizontally also. UC16K includes a height bar,
making possible identical recesses on several doors at the same height,
with no need to readjust the lock mortising template holder.
Optional bits
1640157 Carbide bit Ø 12 mm (for FR66P)
1640258 Carbide bit Ø 12 mm (for FR160P)
(see page 48)
