PB83E

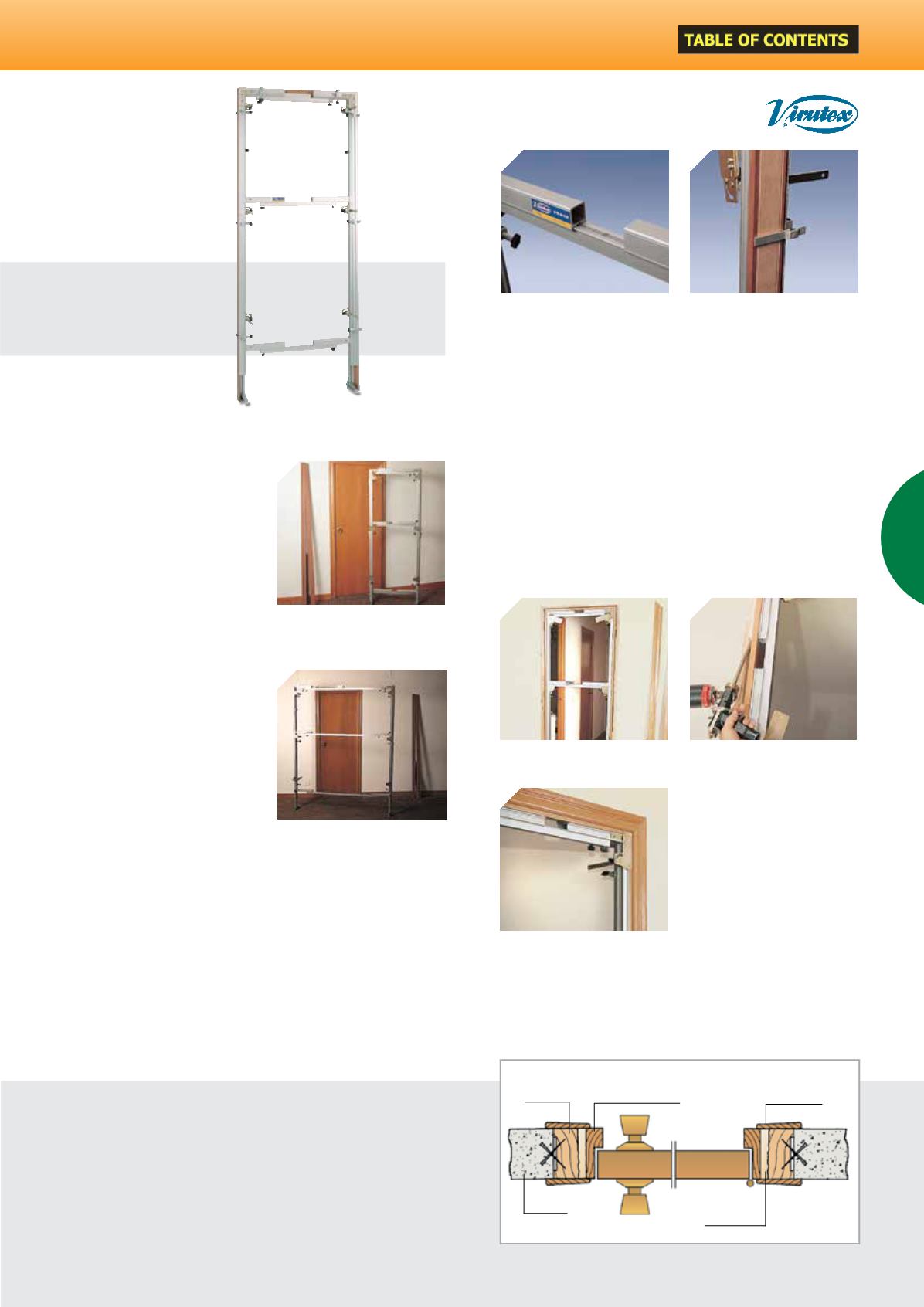

The template is designedto facilitate
the fast and perfect placement of
framesandbuttstrapsindoorsteads,
securing them by means of polyu-
rethane foam. The frames and butt
straps can be placed in new or old
doorsteads, and the existing door
can be used in the latter case. The
use of polyurethane foam guaran-
tees total durability, making the
door extremely robust. It sets fast
(in under 10 minutes), enabling
rapid work and optimum use of the
available time.
Filling with polyurethane foam.
Placement of the PB83E, flush
with the doorstead.
Placing the butt straps using the
stops provided.
Fast setting
Securing the frames to the
template.
Adjustment of measurements on
the PB83E in function of the door
to be placed.
Easy placement
Double door kit ref. 8345175.
For cutting the old frame we
recommend our cutting machine
model RM95R.
Anyway the cut can be alsomade
by mean of any other kind of saw
or manual tool.
In the case of new constructions,
this process is not necessary.
It is not necessary to change
the settings of the PB83E when
removing it from the finished
door. This means that we can fit
as many doors as required with
the same measurements.
Many different door sizes
The template supports a wide range of door sizes, based
on standard UNE 56802.
Door sizes supported:
Height from 1,905 to 2,160 mm
Width from 620 to 1,020 mm
Depth from 35 to 45 mm
Optional accessories
8345175 Extension for placing
frames and butt straps in doors-
teads for double or special sized
doors.
Width from 1,240 to 1,640 mm
Doorstead Frame or batten
Butt strap
Polyurethane
foam
Wall
Profile of finished door
Long lasting fixation thanks to
the polyurethane foam.
