89
SFV150
SFV50
SVN250

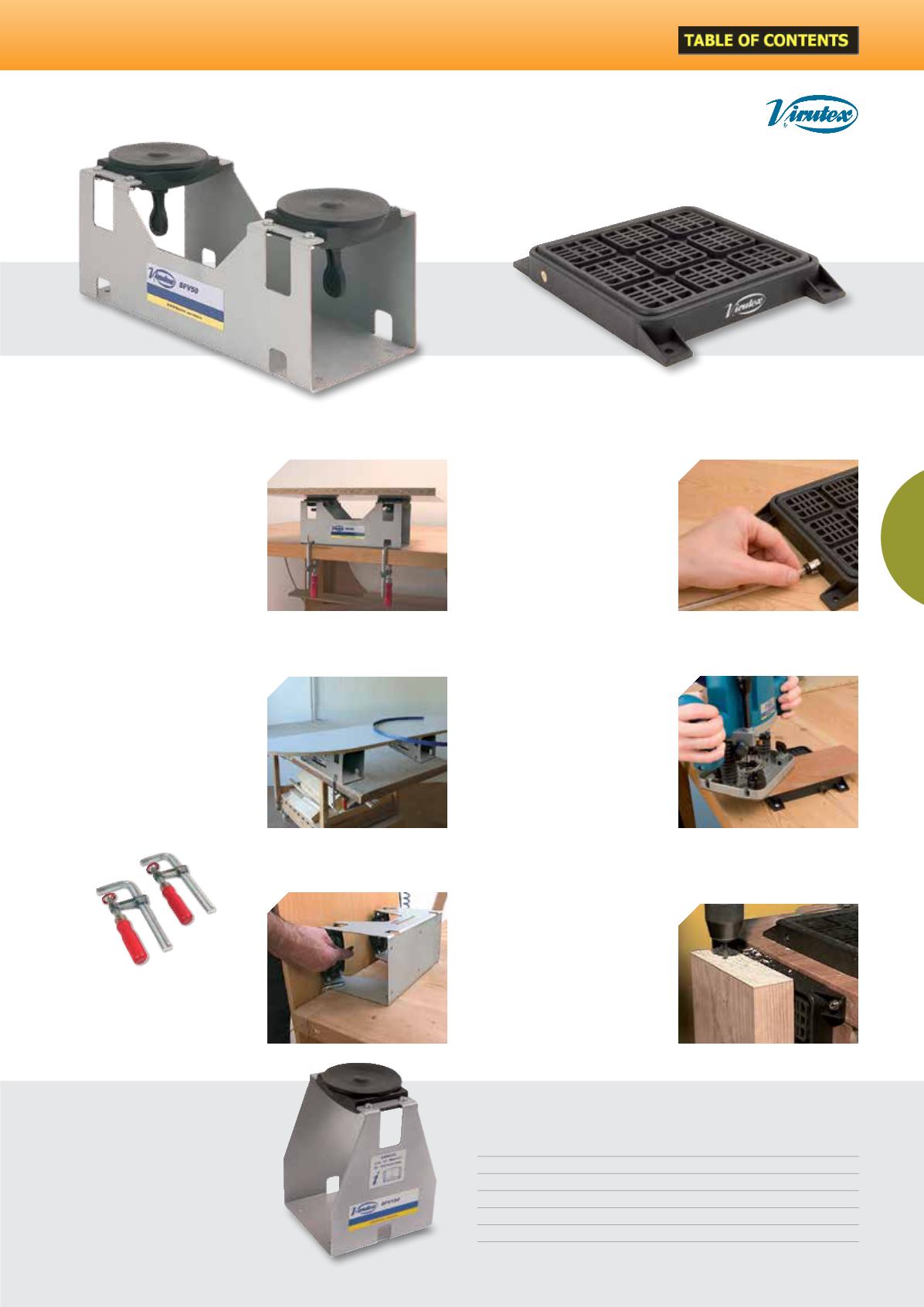

The vacuum table SFV50 is ideal
for a quick fastening of the panel.
Two clamp screws are included as
standard equipment to fix the table
to the workbench.
It is an efficient system to hold the
panelandworkinacomfortableway
on all its edges. The vacuum table
must be used with clean, smooth
and non porous panels only.
It is possible to hold panels in ori-
zontal or vertical position. Using
several vacuum tables it is possible
to hold larger panels.
Standard equipment
Set of two clamp screws L=100
(ref. 6045710) included
| Vacuum table
Using two vacuum tables it is pos-
sible to hold larger panels.
It can be fixed to the workbench
by means of the two clamp screws
included as standard equipment.
It is possible to hold
panels in horizontal or
vertical position.
Vacuumtable similar to SFV50, butwith
only one suction pad.
Standard equipment
1 clamp screw L=100
Clamping systems
Designed for fixing pieces with
smooth and non porous surfaces
by means of vacuum. The pieces
remain firmly fixed, without any
mark on their surface. Possibility to
fix big or small pieces in different
positions. The fixing force allows to
work comfortably in an easy way.
The air supply is done through a
fast connection pipe. Its compact
size makes it very versatile and
handy, for workingwithin and away
from the workshop. It is possible to
fix pieces in vertical or horizontal
position. Ideal for several works like
trimming, banding...
It is possible to divide the suction
plate in smaller sections by means
of the set of rubber joints included
with the equipment, allowing to fix
small pieces. Using several SVN250 it
is possible to fix big panels or pieces.
The SVN250 must be fixed to the
workbench by screws, through the
holes on the plastic base.
Holding small pieces on a section
of the suction plate.
Fixing pieces in vertical position.
Standard equipment
SVN250 with rubber joint, transpa-
rent pipe with fast connector 1/4”
and set of 3 rubber joints.
We recommend to use the optional
multiple connector (ref. 5046350)
to connect the SVN250 to the air
supply.
| Pneumatic vacuum clamp
Specifications
Fixing force
800 gr/cm
2
at 6 bar
Working pressure
5.5-7 bar
Air comsuption at 5.5 bar
28 l/min
Suction plate dimensions
150x150 mm
Unit dimensions
160x22x200 mm
Weight
325 gr
The air supply is done through the
fast connection pipe.
