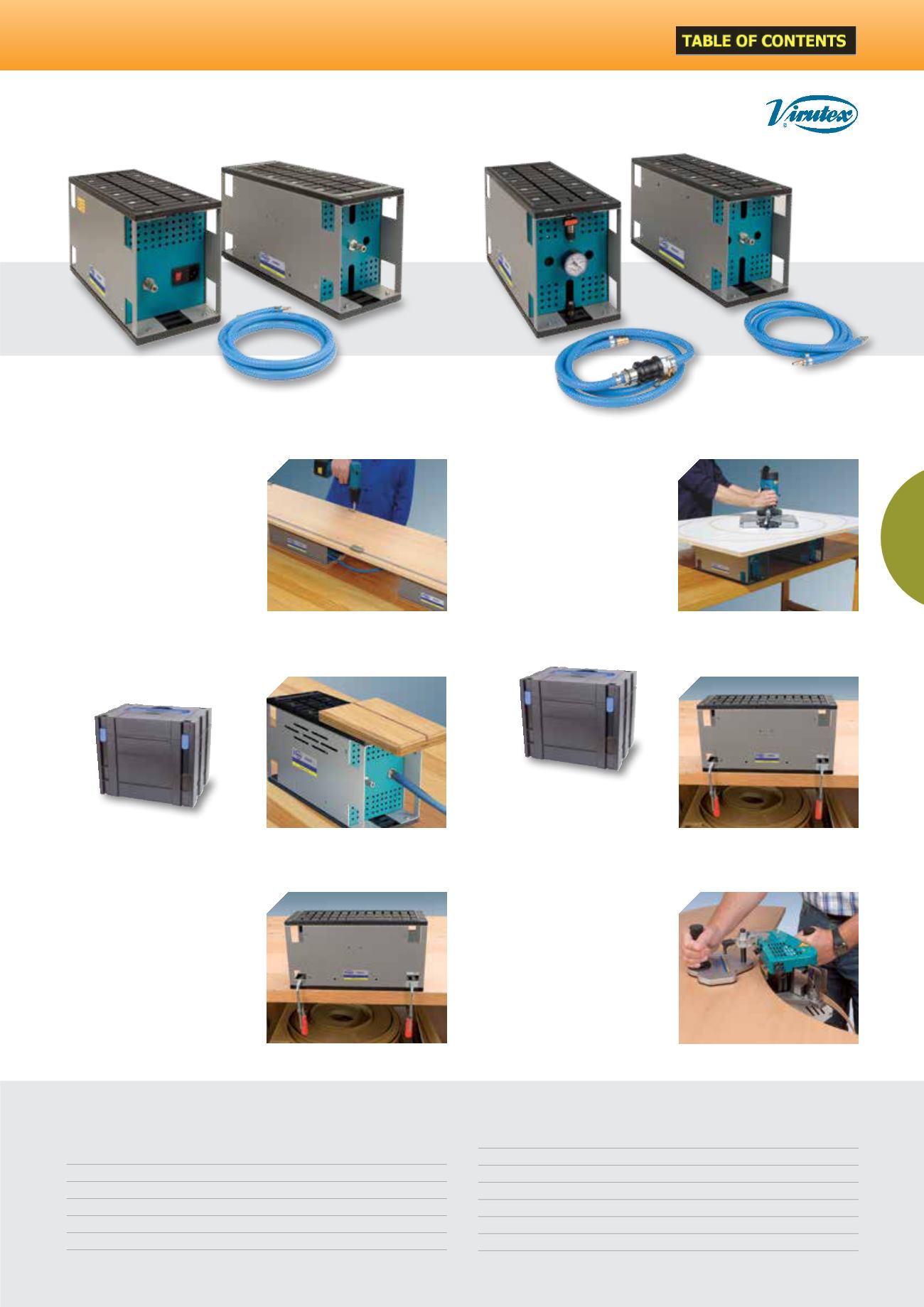

SVE500
SVE500
SVN500
Standard equipment
Main unit with electric pump
Auxiliary unit
Carrying case
Standard equipment
Main unit with pump
Auxiliary unit
Carrying case
Vacuum clamping system operated
by a powerful noiseless electric
vacuum pump.
Equipped with suction plates on
both sides (top andbottom) it allows
horizontal or vertical clamping of
pieces of various materials.
Divisible suctionplates for clamping
small pieces.
Clamping power on both sides up
to 95 kg.
Vacuum clamping system operated
by compressed air.
Suction plates on both sides (top
and bottom) allowing horizontal or
vertical clampìng of pieces.
Divisible suction plates for clamping
small pieces.
Clamping power on both sides up
to 95 kg.
Easy horizontal clamping.
Easy horizontal clamping.
Easy to clamp on rough surfaces
by clamping screws.
Easy to clamp on rough
surfaces by clamping
screws.
Small piece clamped on divisible
suction plate.
Clamping systems
Specifications
Working pressure
4-6 bar
Air requirement (4 bar)
48 l/min
Generated vacuum*
700 mbar
Clamping power both sides*
95 kg
Suction plate dimensions
340x125 mm
Unit dimensions
390x145x200 mm
Weight
10.5 kg
Specifications
Input power
120 W
Generated vacuum*
750 mbar
Clamping power both sides*
95 kg
Suction plate dimensions
340x125 mm
Unit dimensions
390x145x200 mm
Weight
14.7 kg
| Electric vacuum clamping system
| Compressed air vacuum clamping system
(*) Clamping by vacuum system is only possible on smoth and non porous surfaces.
(*) Clamping by vacuum system is only possible on smoth and non porous surfaces.
Perfect clamping for
working with the
PEB250 edge banders.
Optional accessories
Set of two clamp screws L=100
(ref. 6045710)
Optional accessories
Set of two clamp screws L=100
(ref. 6045710)
