Clamping systems
Specifications SVN450/SVN460/SVN470
Fixing force
800 gr/cm
2
at 6 bar
Working pressure
5.5-7 bar
Air consumption at 5.5 bar
28 l/min
Suction plate dimensions
150x150 mm

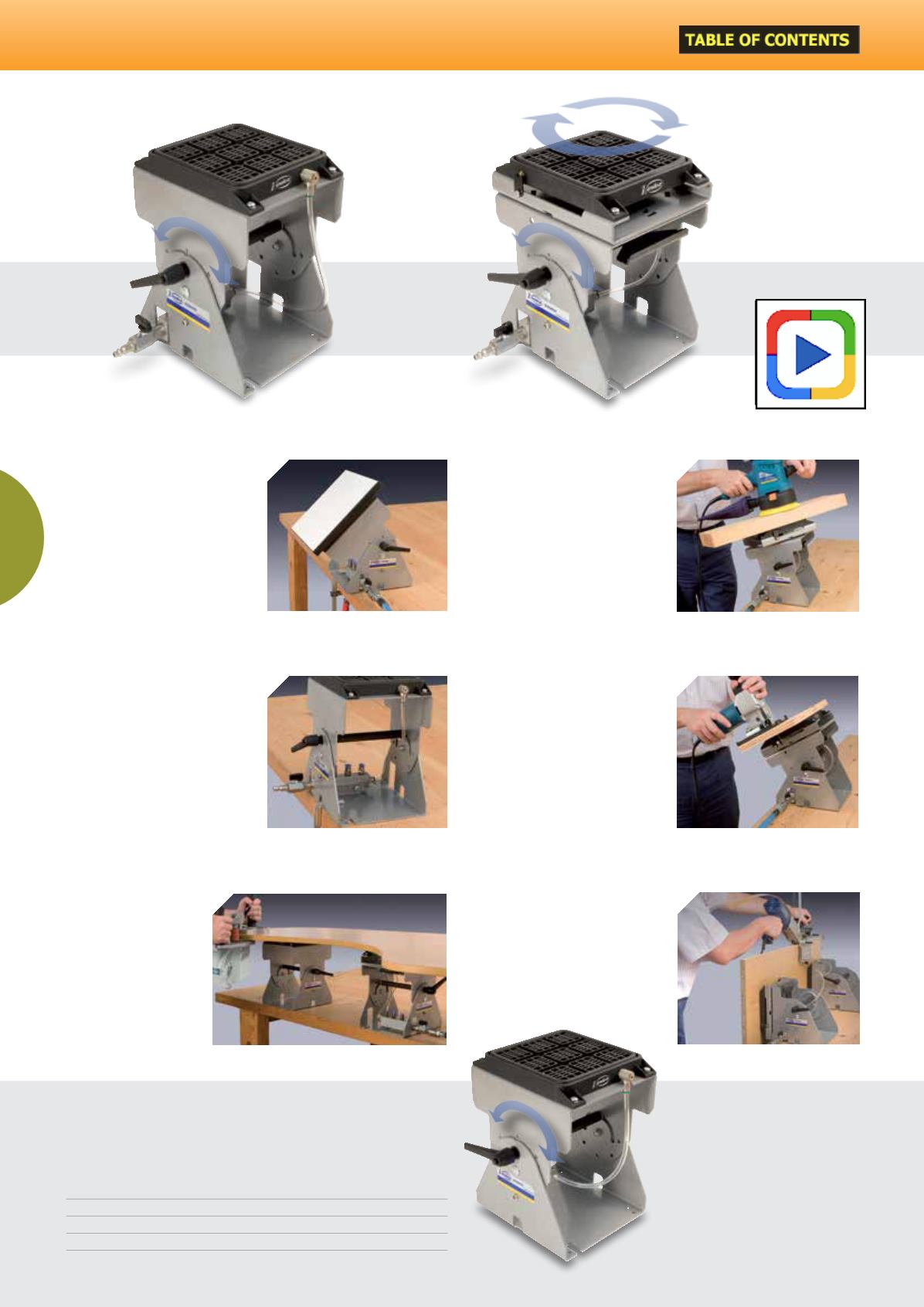

| Tilting/swivelling vacuum fastening system
| Tilting vacuum fastening system
The SVN450 fastening tilting system
consists of an SVN250 basic system
fittedonatiltingsupport.Allowsyou
to machine the edges and surface of
the piecewithout changing the grip.
It includes an air distributor with
four free sockets, which allows the
connection of SVN470 or SVN250
auxiliary units, equipped with valve
and quick connector to the pneu-
matic system.
Also included in the equipment is a
G-clamp for quick clamping of the
SVN450 system to the workbench
and a set of three rubber seals of
different perimeters.
Available with the option of a set of
four screws for fitting an SVN250 on
the base (0999102).
The SVN460 multiple fastening
system consists of an SVN250 basic
system fitted on a tilting and swive-
llingsupport.TheSVN460allowsyou
tomachine the edges and surface of
the part without changing the grip.
It includes an air distributor with
four free sockets, which allows the
connection of SVN250 or SVN470
auxiliary units, equipped with valve
and quick connector to the pneu-
matic system. Also included in the
equipment is a G-clamp for quick
clamping of the SVN460 system to
the workbench and a set of three
rubber seals of different perimeters.
Available with the option of a set of
four screws for fitting an SVN250
on the base (0999102).
Allows to place the piece in the
correct position.
Auxiliary tilting fastening system
to be connected to the SVN450 or
SVN460. Allows you to machine
the edges and surface of big pieces.
Adjustable tilting and swivellig
support.
Distributor for connection of up to
four auxiliary SVN470 or SVN250
units.
Adjustable tilting support.
Gripping large pieces
with the help of an
SVN470 auxiliary unit.
Gripping large pieces with
the help of an SVN470
auxiliary unit.
