PAE85T

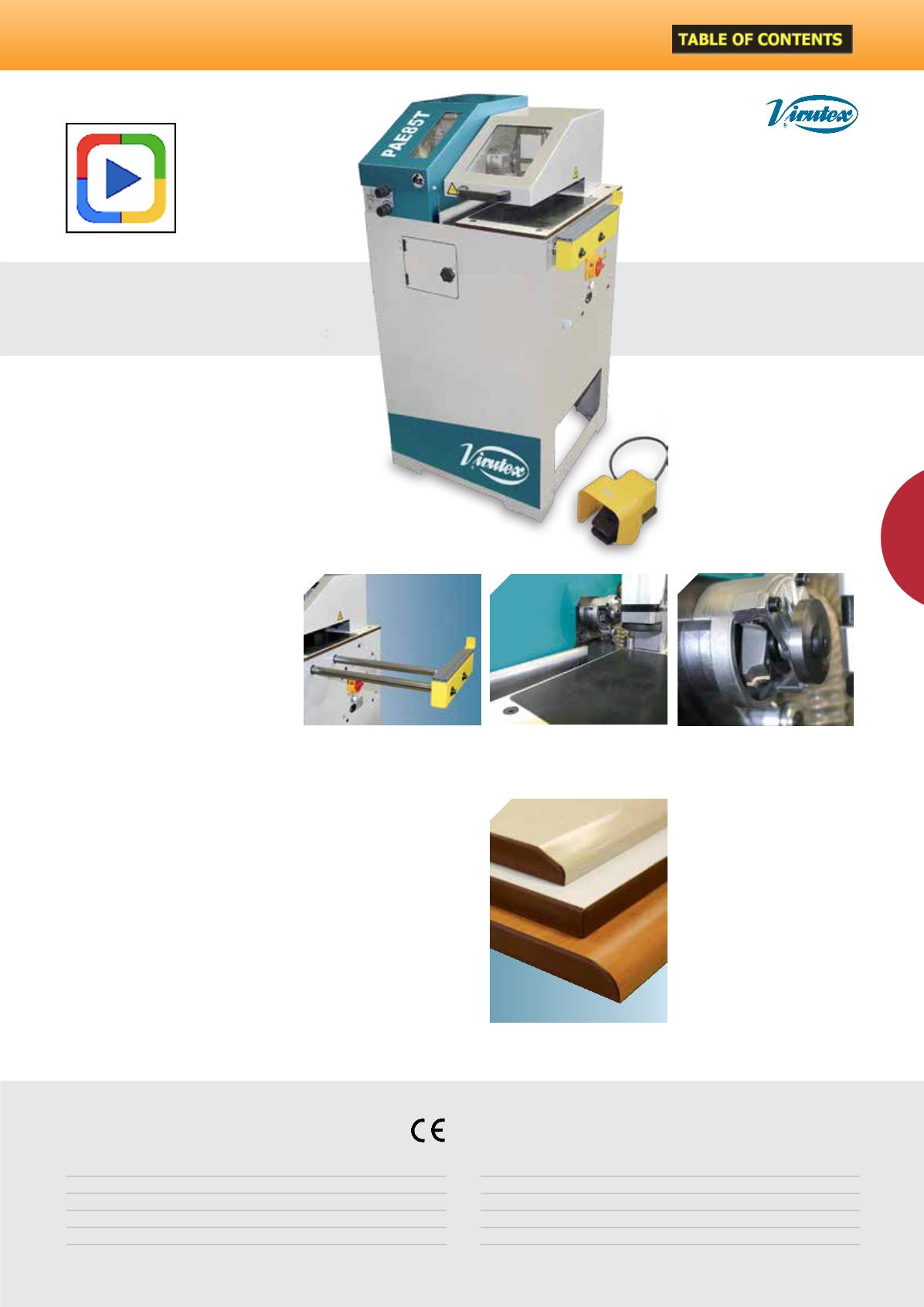

Corner round trimmer for the automatic
trimming on straight, curved or postfor-
med corners on banded panels.
Thanks to the big bit diametre it is posible
to obtain a high quality trimming.
Equipped with an extendable guide for
bigger pieces.
Guide for positioning the panel to be
trimmed in an easy and fast way.
Pneumating presser for fixing the panel
during the trimming process.
The copier is independant from the bit to
avoid an accidental damage of the panel.
Other radius can be possible under order.
Extensible guide for big pieces.
Guiding fence on the side of the
tape to be trimmed.
Specifications
Panel thickness min/max
9/45 mm
Min. panel dimensions
130 mm x 300 mm
(with pushing rod)
100 mm x 130 mm
Max. trimming radius
r: 3
Trimming bit (standard)
R: 2 - chanfer 10º
Separate copier from the bit.
| Corner round trimmer
Trimming bit (optional)
R: 3 - chanfer 10º
Bit diameter
60 mm
Bit speed
10.000/min
Voltage
230 V / 50-60 Hz
Working pressure
6 bar
Corner round trimmer
High quality trimming in
several kind of corners.
Bit included as standard equipment
8540183 Upper bit Ø 60 Z4, r:2, 10° bevel
Optional bits
8540172 Upper bit Ø 60 Z4, r:3, 10° bevel
8540185 Upper bit Ø 60 Z4, 45° bevel
