25
0-91,5°
1
2

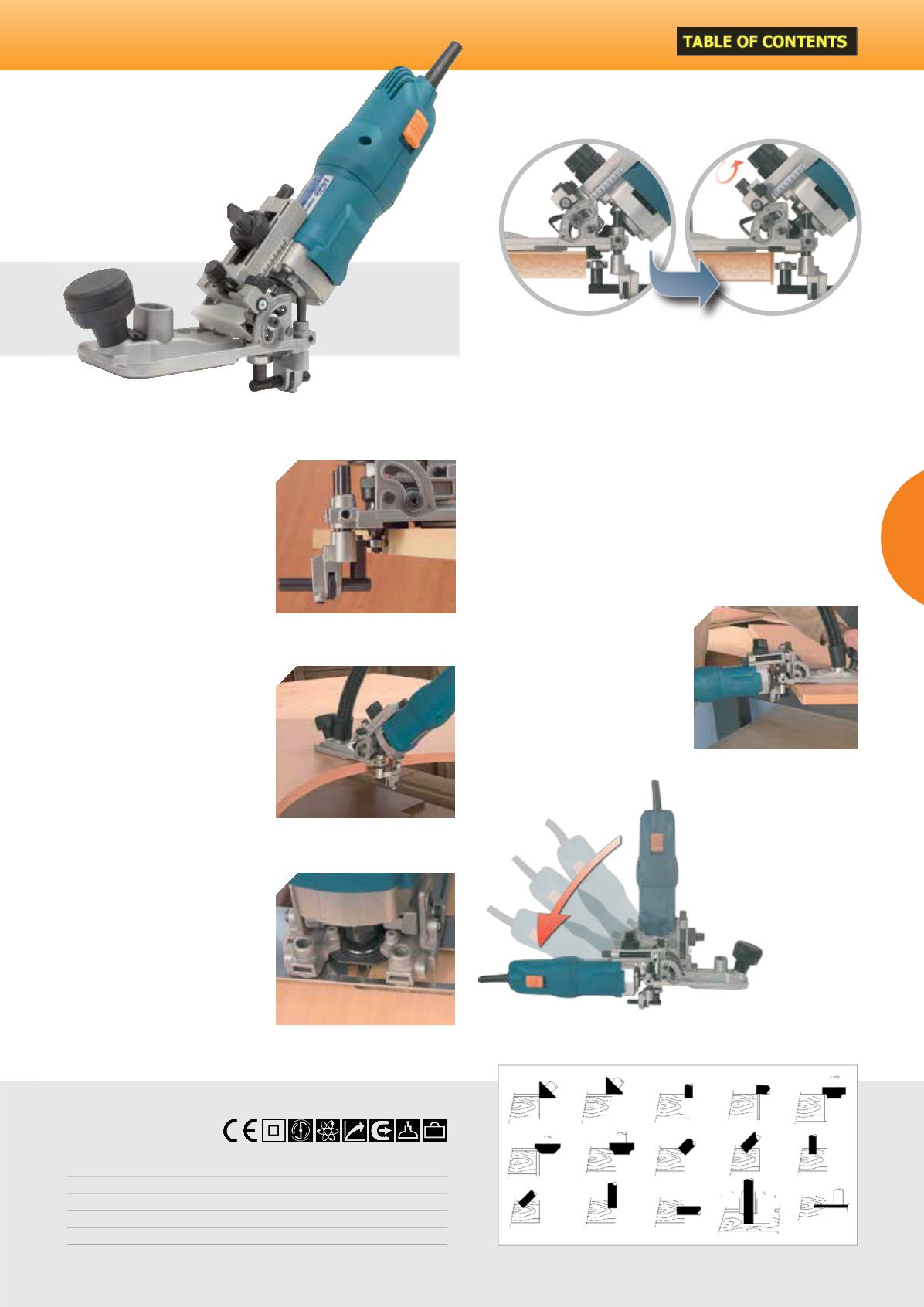

FR292R
Trimmers
| Electronic tiltable trimmer
The only trimmer capable of trim-
ming the excess of the panel or edge
surfaces flat or at any angle, without
changing the bit.
Its wide base provides effective
guiding and easy trimming. It offers
numerousadditionaltrimmingpossi-
bilities, thanks to the unique tilting
and adjustment system.
Equipped with a powerful 750 W
motor with electronic speed ad-
justment and constant torque
control for a constant motor speed
under load. External dust collector
connection.
Specifications
Input power
750 W
Max. bit diameter
25 mm
Chuck collet
8 mm
No-load speed
14,000-30,000/min
Weight
2.2 kg
Lateral fence, avoids the irregula-
rities of the edges can be copied.
Copier with ball bearing. Perfect
guiding on straight or curved
surfaces.
Guide ring for copying with tem-
plate as a small router.
Trimming the edge with the
straight bit.
Trimming with the straight bit
The tiltablemotor body permits the
trimmingofstraightedgeswiththe
straight bit (included as standard
equipment) as well as the excess
surface. Excess panel is trimmed
with themotor body in the vertical
position, and edges with themotor
body inclined to 91.5º, i.e. at 1.5º
below the board surface, thereby
avoiding damage.
Easier, more accurate trimming, with the special 90º bit.
The machine body can be tilted to
approximately 46.5º, so that the
edge of the bit is at 1.5º to the
surface, preventing damage when
trimming excess edges. Once the
excess coating has been trimmed
from the board surface (1), just
position the bit at the level of the
base to trim the excess edge level
with the surface (2). By simply
operating a single adjustment
control, you can trim a further
excess surface or edge.
By tilting the machine to the
horizontal position, you can trim
45º chamfered edges. You can
also chamfer to the angle you
require (Aº) between 0º and 45º,
by tilting the motor body to the
required intermediate angle (45º
+ Aº on the machine indicator).
Standard equipment
Carbide 90º bit (1140087) and
straight bit Ø 18 mm (1140016) for
trimming and grooving. Chuck collet
Ø 8 mm, copier with ball bearing,
lateral fence with compass, service
keys and carrying case.
Tiltable motor from 0º to 91.5º.
Optional accessories
6446073 Standard dust collector
attachment 2.25 m
1746245 Standard dust collector
attachment 5 m
1222084 Chuck collet 6 mm
1222085 Chuck collet 6,35 mm (1/4”)
Guide rings (see page 61 model
FR129N)
Clamping systems (see page 89)
Some examples of trimming
Bits
see pag. 48
