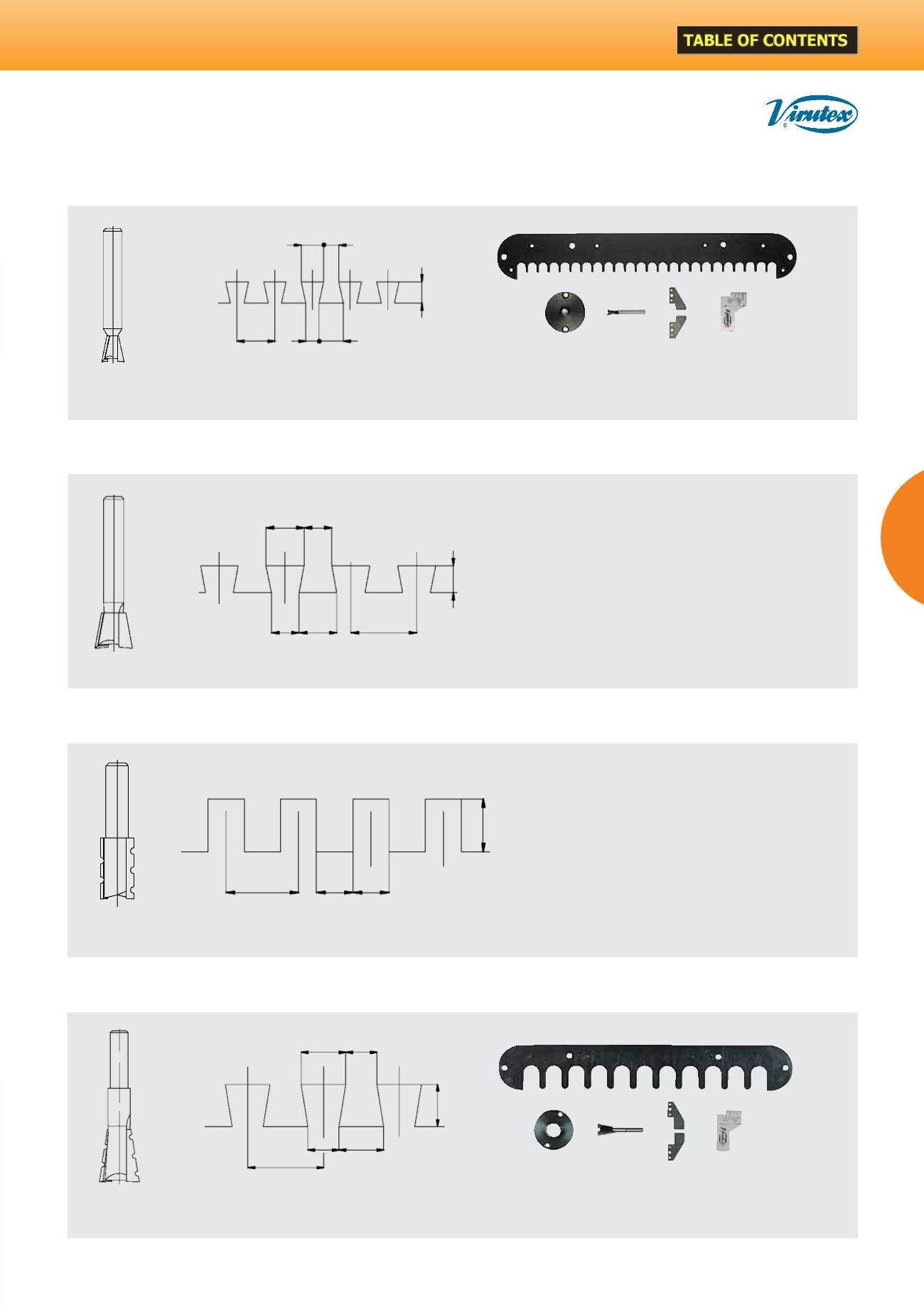

Types of dovetailing
Straight bit Ø HM 13 mm
réf. 1140060
Guide ring ext. Ø 19 mm
For FR66P, AS93+CA66F, already included
For FR277R and FR278R ref. 7722123
1 template pitch16 mm, 1 guide ring/bit12/9.5 mm, 1 dovetail bit
HM Ø 9.5 mm, 2 guide stoppers and milimeter gauge.
kit contents
Dovetail bit Ø HM 15 mm
ref. 6040050
Guide ring ext. Ø 19 mm
For FR66P, AS93+CA66F, already included
For FR277R and FR278R ref. 7722123
kit contents
1 template pitch 34 mm, 1 guide ring/bit 23/20 mm, 1 dovetail
bit HM Ø 20 mm, 2 guide stoppers and millimeter gauge.
Routers · Accessories for routers
DOVETAIL PITCH 16 mm
Made with optional kit:
For FR66P, AS93 + CA66F, FR277R and FR278R: ref. 7745149
Made with the template and stoppers included with the PL11 + bit + guide ring indicated below.
Made with the template and stoppers included with the PL11 + bit + guide ring indicated below.
Made with optional kit:
For FR66P, AS93 + CA66F, FR277R and FR278R: ref. 7745150
DOVETAIL PITCH 26 mm
STRAIGHT JOINT PITCH 26 mm
DOVETAIL PITCH 34 mm
paso=16
6,5
9,5
9,5 6,5
9,00
paso=26
15
11
15
11
10,5
paso=26
13
13
max. 19
paso=34
14
20
20
14
19
